Rubber Bellow Compensator
Designed to accommodate movement, absorb vibration, and reduce stress in industrial piping systems.
Rubber bellow compensators are engineered to manage axial, lateral, and angular movement within piping systems, helping to absorb vibration, reduce mechanical stress, and protect connected equipment from misalignment, thermal expansion, and operational load variations across a wide range of industrial process environments.
Flexible expansion solutions engineered for industrial reliability
Rubber bellow compensators are critical components in industrial piping systems where movement, vibration, pressure variation, and misalignment must be managed without compromising system integrity. PCS rubber bellow compensators are specified, selected, and supported to ensure reliable operation in demanding industrial environments across South Africa.
What Are Rubber Bellow Compensators?

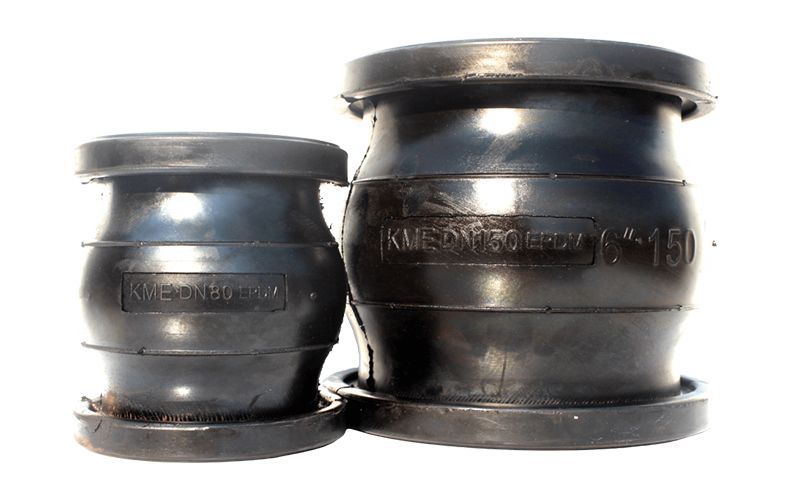

Rubber bellow compensators, also referred to as rubber expansion joints, are flexible connectors installed in pipework to absorb mechanical stresses and protect connected equipment.

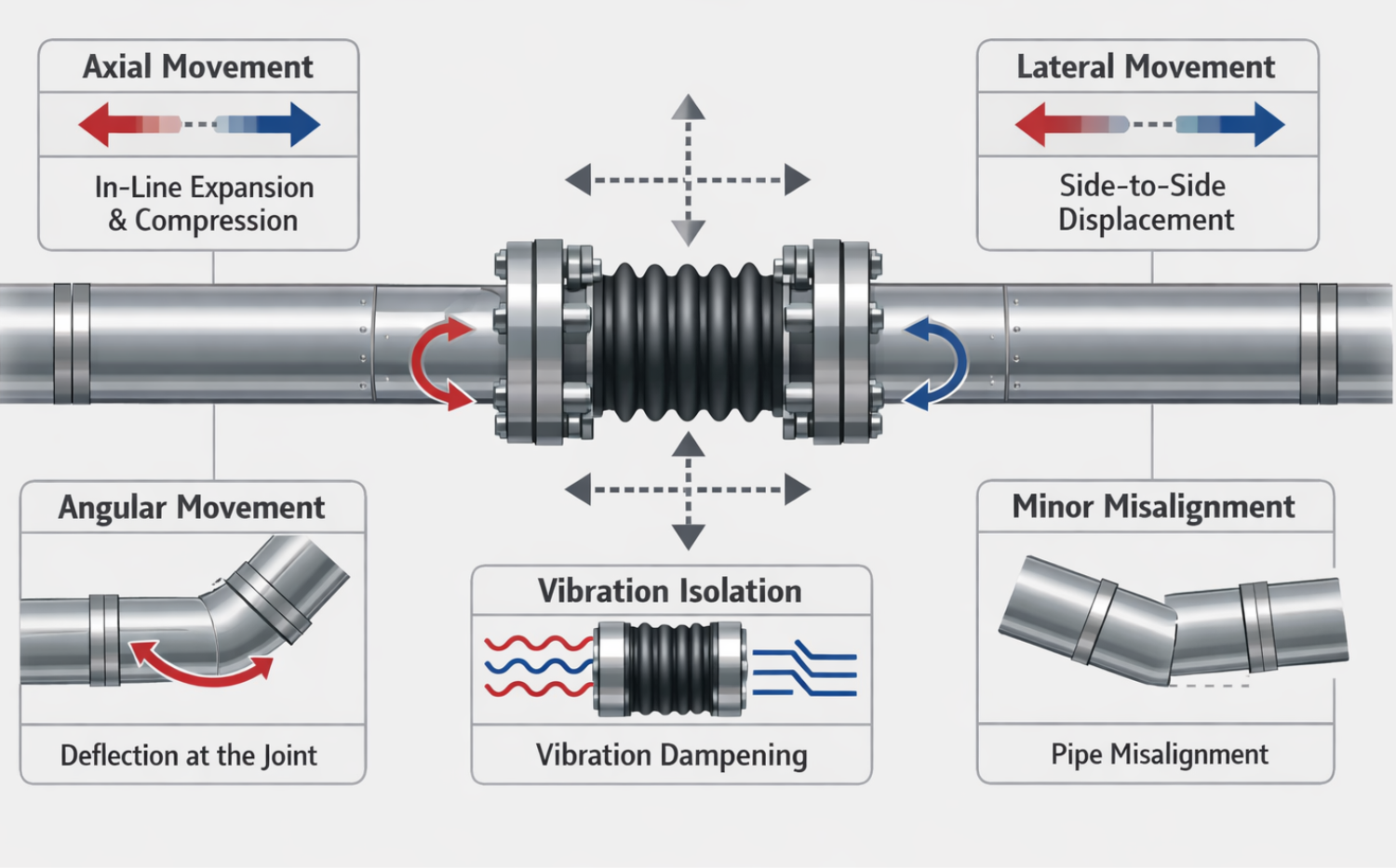

They are designed to compensate for:
-
Axial, lateral, and angular movement
-
Thermal expansion and contraction
-
Vibration transmitted through pipe systems
-
Minor misalignment during installation or operation
Correctly specified rubber bellows reduce stress on pumps, valves, pipework, and support structures, contributing directly to extended equipment life and improved system reliability.
Material Options and Construction
Rubber bellow compensators are available in a range of elastomer and reinforcement configurations to suit different operating conditions.
Common elastomer options include:
-
EPDM (water, wastewater, mild chemicals)
-
NBR (oil and hydrocarbon service)
-
Neoprene (general industrial use)
-
Special compounds for chemical resistance (application dependent)

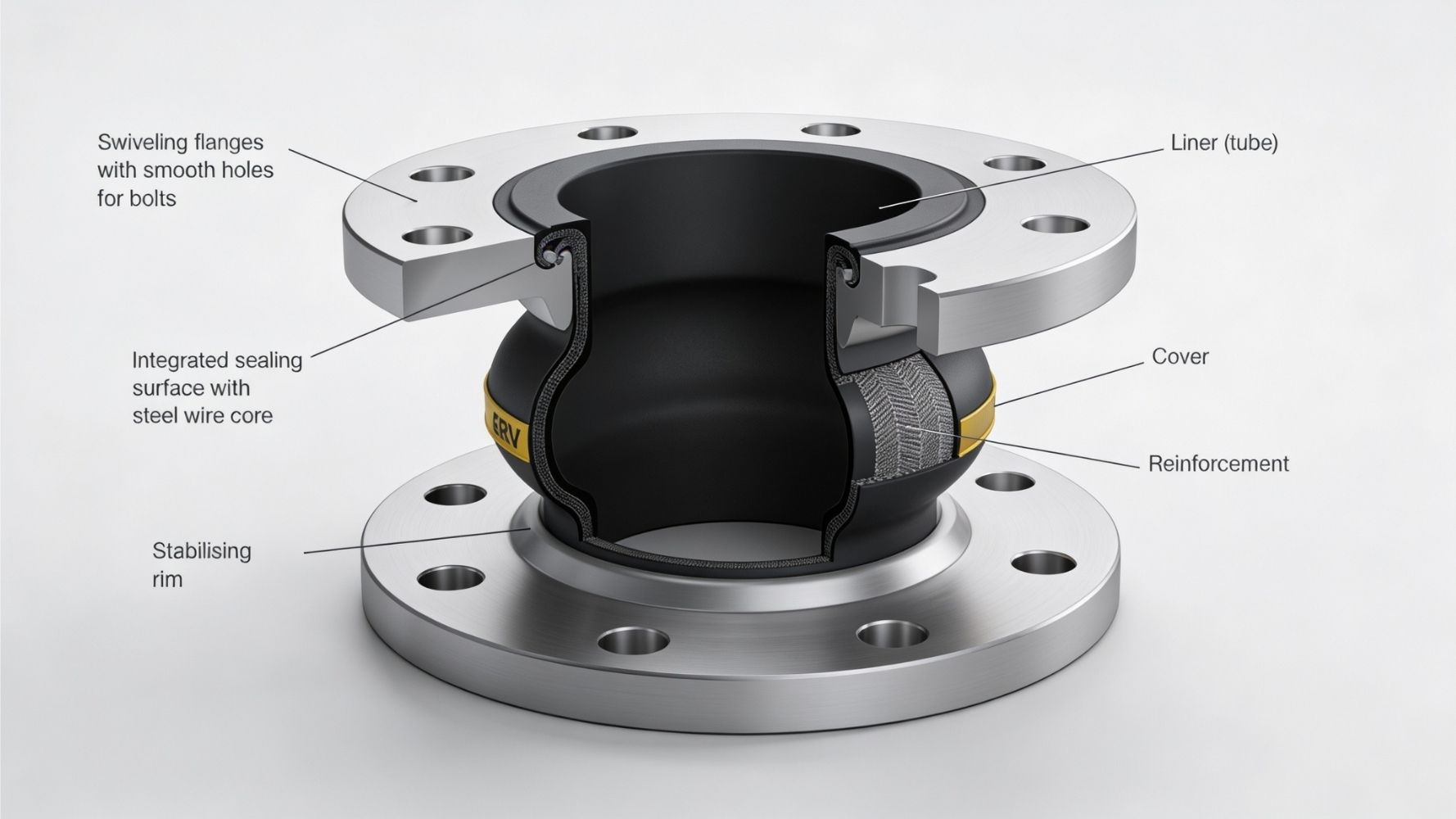

Construction options may include:
-
Single or multiple arch designs
-
Fabric or steel-reinforced bellows
-

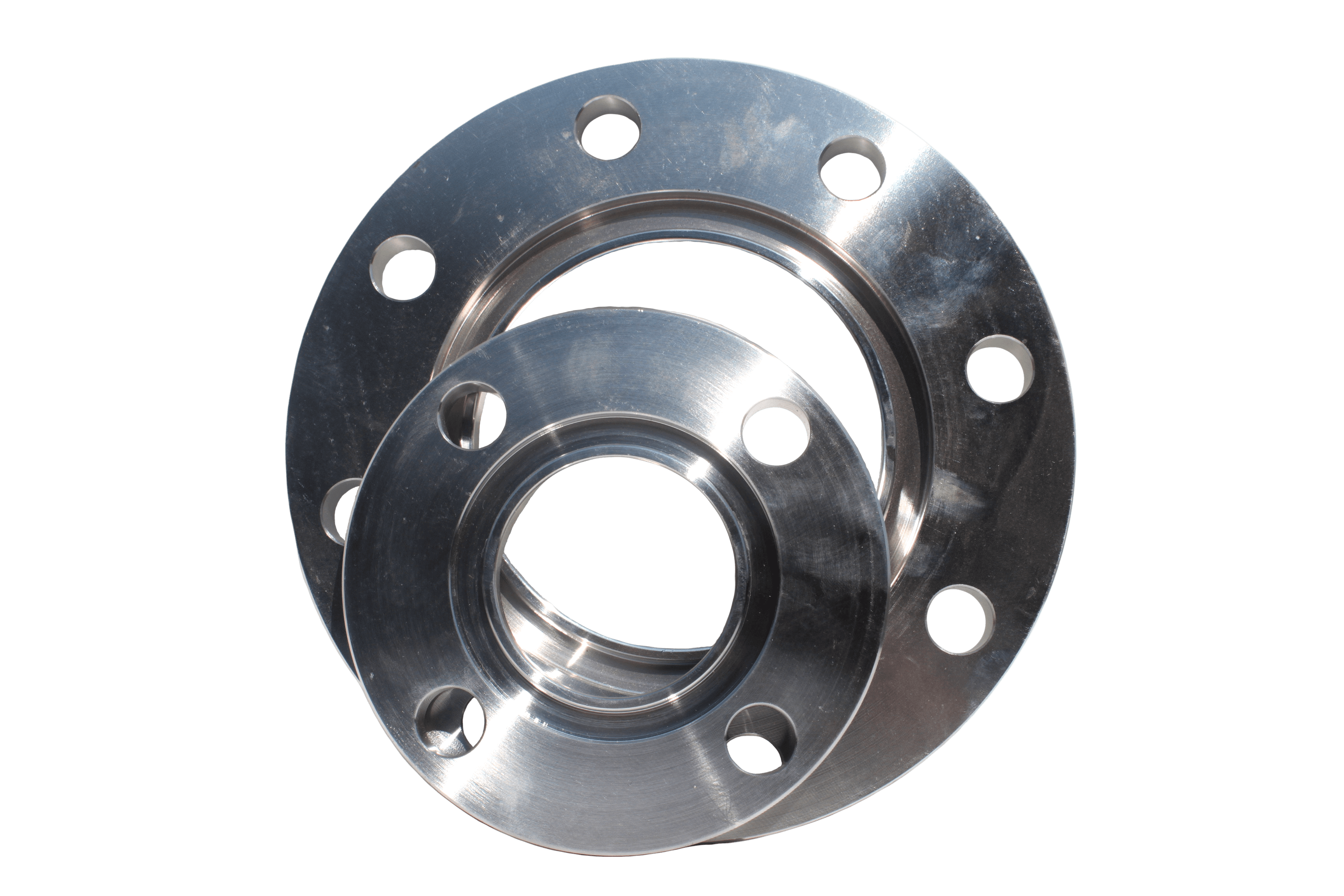

Flanged, threaded, or customised end connections
PCS assists with material compatibility assessment to reduce the risk of premature degradation, swelling, or failure.
Key Benefits of Rubber Bellow Compensators
When correctly selected and installed, rubber bellow compensators deliver measurable operational value:
| Benefit | Description |
|---|---|
| Vibration isolation | Reduces transmission of vibration to pumps, valves, and pipe supports. |
| Stress reduction | Absorbs pipe movement caused by temperature changes and operational loading. |
| Equipment protection | Limits mechanical strain on flanges, casings, and connected machinery. |
| Noise reduction | Dampens structure-borne noise within piping systems. |
| Improved system longevity | Supports longer service life of piping and rotating equipment. |
Rubber Expension Joint Technical Specification
PCS Technical Support and Supply
PCS does not treat rubber bellow compensators as commodity items.
Each solution is supported by technical guidance and engineering insight.
Our scope includes:
-
Application review and compensator selection
-
Material and pressure rating verification
-
Integration with existing pipework and equipment
-
Supply of quality industrial-grade compensators
-
Ongoing technical support where required
The objective is simple, protect the system and reduce avoidable failure risk.
Precision Engineered
Ensuring a perfect fit for your containment systems. This precision guarantees minimal leakage and optimal performance.
Unmatched Durability
Built to withstand even the severe atmospheric conditions, our bellows are engineered to be resistant to abrasion, chemicals, and extreme temperatures.
Enhanced Safety
The PCS rubber bellow compensators are exceptionally flexible and resilient, reducing the risk of leaks, protecting your personnel and equipment.
Customer-Centric Approach
We're not just selling bellows; we're providing solutions tailored to your success. Our responsive support team is here to assist you every step of the way.
Quality Assurance
Our bellows undergo rigorous quality control processes to ensure they meet and exceed industry standards. We stand by the quality of our products.
Versatile Solutions

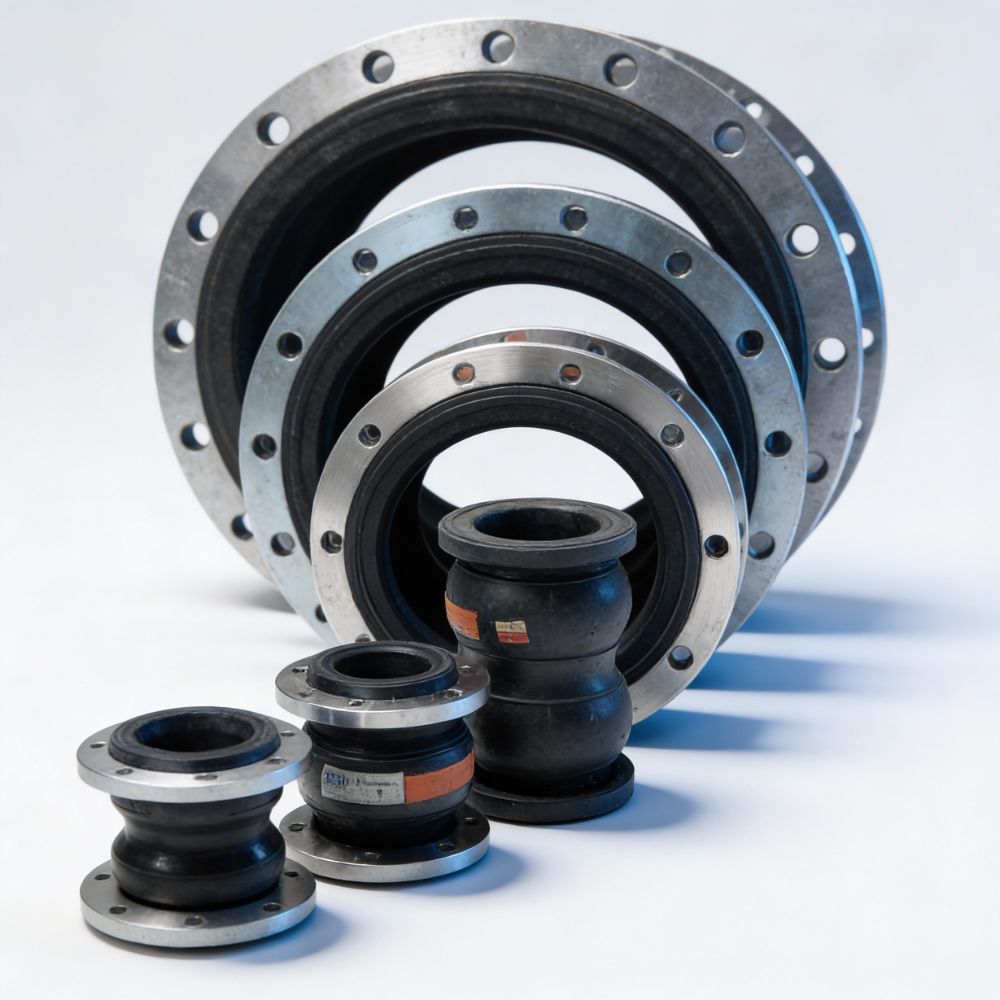

From standard to custom sizes, PCS offers a diverse range of bellows to cater to your needs. No matter the complexity of your process, we've got you covered.
Contact Our Team Today, Let's Discuss How We Can Assist You
If your operation requires leak-free, safety-critical fluid handling, PCS can assist with selecting and supporting the correct Flowserve HPX mag drive pump configuration for your process.
Contact Process Containment Solutions to discuss your application requirements and operating conditions.
