Understanding Where, Why & How Air-Operated Diaphragm Pumps Outperform Other Technologies

Air-Operated Diaphragm Pumps (commonly referred to as AODD pumps, pneumatic diaphragm pumps, acid transfer pumps, viscous fluid pumps, or double diaphragm pumps) have become indispensable across industries such as mining, petrochemical, water treatment, and manufacturing, and understanding what they are, where they are applied, why they are chosen, and how they operate is critical for engineering teams and procurement specialists seeking reliable, efficient fluid handling solutions.



How AODD Pumps Work: Technical Summary

AODD pumps are positive displacement units that operate using two flexible diaphragms connected by a shaft. Compressed air alternates pressure between the diaphragms, causing one side to draw fluid in while the other discharges it. This cycling action is regulated through check valves that ensure one-directional flow.

Materials of Construction

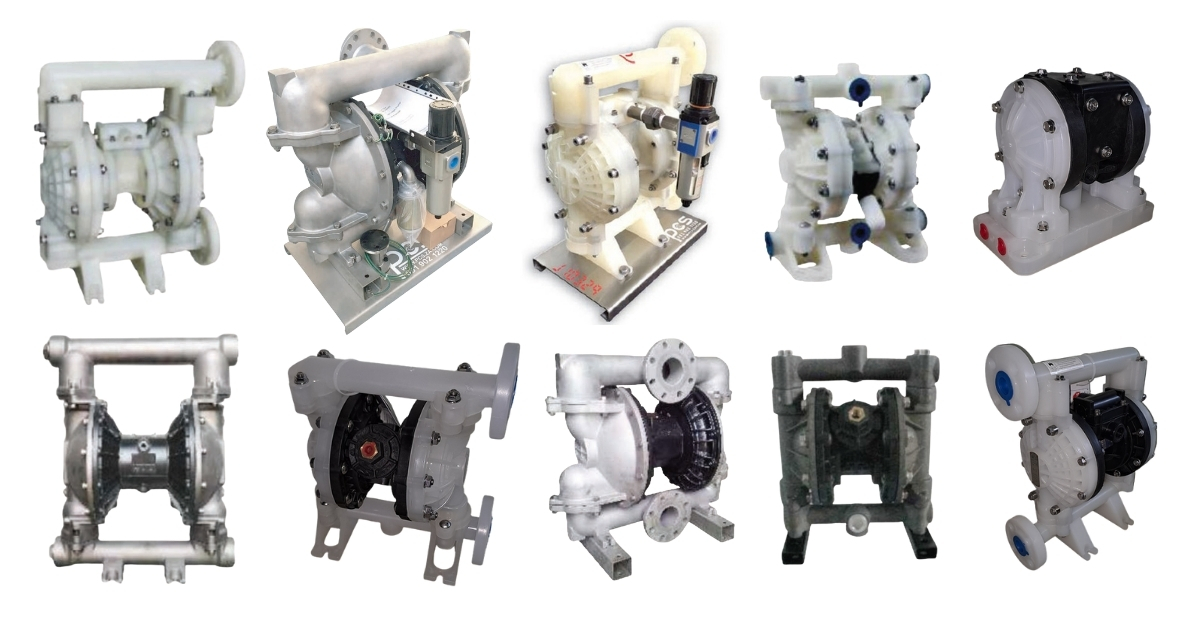

PCS supplies AODD pumps in a wide range of chemically resistant materials, including:

• Aluminium: Ideal for general-purpose, non-corrosive applications.
• Polypropylene: Suitable for aggressive chemicals and lightweight operations.
• Stainless Steel: Preferred for food-grade, sanitary, or highly corrosive conditions.



Industrial Applications and Sector Use Cases

1.Mining & Water Treatment

AODD pumps are used for filter press feed, chemical dosing, and acidic slurry transfer. Their ability to handle abrasive particles and run dry without damage makes them ideal for remote or unstable fluid conditions.

“In dewatering and slurry handling, reliability and solids tolerance are critical, which is why AODD pumps are widely used in tailings and treatment circuits.” – Mining & Minerals Processing Journal, 2023



2.Chemical Processing

AODD pumps are widely selected for corrosive chemical transfer, including acids, caustics, and solvents. With hermetic sealing, the risk of leakage is eliminated, a vital feature for safety in chemical environments.



3. Food & Beverage

Sanitary-grade AODD pumps are used in the metering and transfer of food ingredients such as syrups, sauces, and viscous liquids. Materials like polished stainless steel and FDA-compliant elastomers make them hygienic and clean-in-place (CIP) friendly.



4. Oil & Gas / Environmental Spill Response

In spill control and hazardous fluid clean up, the spark-free air-actuated design of AODD pumps allows operation in ATEX-rated or explosive environments. They are also used in fuel transfer, oil/water separation systems, and remote dewatering.



Why Choose an AODD Pump?

Key Feature and Operational Benefit

• Self-priming and dry-run capable – Reduces start-up time and pump damage risk
• Hermetically sealed – No mechanical seal or shaft, eliminates leakage
• High solids handling – Pumps slurries, viscous fluids, and abrasives with ease
• Pneumatic drive – Safe for flammable or volatile environments
• Simple maintenance – Minimal moving parts, no complex sealing systems





Preferred Use Cases for AODD Technology

PCS recommends AODD pumps when fluid characteristics are aggressive, variable, or unpredictable, and when leak-free operation is critical. They are also ideal where electrical power is restricted or in hazardous environments where spark-free operation is mandatory.

“AODD pumps provide process assurance when failure is not an option, especially in corrosive or particulate-rich environments.” – Plant Engineer, South African Petrochemical Sector

AODD Pumps Deliver Unmatched Versatility in Fluid Control

Whether you operate a gold mine in the Northern Cape, a wastewater treatment plant in the Western Cape, or a chemical blending facility in Gauteng, AODD pumps offer unmatched flexibility, safety, and reliability.

At PCS, our team works closely with engineering managers and plant operators to ensure you’re specifying the right AODD unit for your application, based on chemical compatibility, flow rate, viscosity, temperature, and operating environment.
